3 doors plug-in

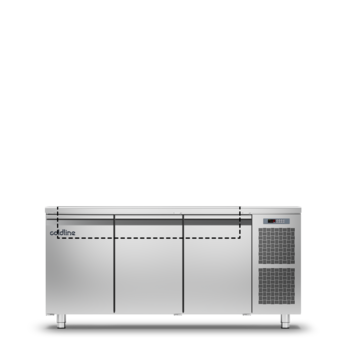

Saladette GN counter 3 doors
TA17/1MD-710
Saladette GN counter 3 doors
-2°+8°C
top with splashback h. 710 mm
Plug-in
-2°+8°C
top with splashback h. 710 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 440 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×950 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TP17/1MD-710
Saladette GN counter 3 doors
-2°+8°C
with top h. 710 mm
Plug-in
-2°+8°C
with top h. 710 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 440 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×850 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TS17/1MD-710
Saladette GN counter 3 doors
-2°+8°C
without top h. 710 mm
Plug-in
-2°+8°C
without top h. 710 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 440 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×655×810 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TA17/1MD-760
Saladette GN counter 3 doors
-2°+8°C
top with splashback h. 760 mm
Plug-in
-2°+8°C
top with splashback h. 760 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 476 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×1000 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TP17/1MD-760
Saladette GN counter 3 doors
-2°+8°C
with top h. 760 mm
Plug-in
-2°+8°C
with top h. 760 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 476 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×900 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TS17/1MD-760
Saladette GN counter 3 doors
-2°+8°C
without top h. 760 mm
Plug-in
-2°+8°C
without top h. 760 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 476 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×655×860 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TA17/1MD-660
Saladette GN counter 3 doors
-2°+8°C
top with splashback h. 660 mm
Plug-in
-2°+8°C
top with splashback h. 660 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 403 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×900 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TP17/1MD-660
Saladette GN counter 3 doors
-2°+8°C
with top h. 660 mm
Plug-in
-2°+8°C
with top h. 660 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 403 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Defrost Hot gas
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×700×800 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
Saladette GN counter 3 doors
TS17/1MD-660
Saladette GN counter 3 doors
-2°+8°C
without top h. 660 mm
Plug-in
-2°+8°C
without top h. 660 mm
Plug-in
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 403 lt
- Temperature range -2°+8°C
- Refrigerant unit Plug-in
- Cooling gas R290 (GWP=3)
- Refrigerant Charge 110g
- Defrost Hot gas
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 1780×655×760 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50 Hz
- Cooling capacity 406 W*
- * Evap. -10°C Cond. +55°C
Accessories
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- IP44 schuko socket with cover
- Saladette pans kit, 3 doors
- Saladette lid, standard dimensions 3D
- Saladette internal basin, standard dimensions 3D
- Removable plinth GN 3D h 100 mm
- Removable plinth GN 3D h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Special counter body heights 650 mm
- Special counter body heights 700 mm
- Special counter body heights 750 mm
- Technical compartment on the left
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- LED lighting
- RAL customisable colouring
- Plug-in water unit
- Stainless steel evaporator
- Saladette lid, customised dimensions
- Saladette internal basin, customised dimensions
- Internal hygiene H3
- Granite worktop with splashback
- Granite flat worktop
