3 doors remote
Snack GN counter 3 doors
TP17/1BR-490
Snack GN counter 3 doors
-15°-22°C
with top h. 490 mm
remote
-15°-22°C
with top h. 490 mm
remote
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×700×630 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50-60 Hz
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 3DR h 100 mm
- Removable plinth GN 3DR h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
Snack GN counter 3 doors
TS17/1BR-490
Snack GN counter 3 doors
-15°-22°C
without top h. 490 mm
remote
-15°-22°C
without top h. 490 mm
remote
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1570×680×590 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50-60 Hz
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 3DR h 100 mm
- Removable plinth GN 3DR h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage

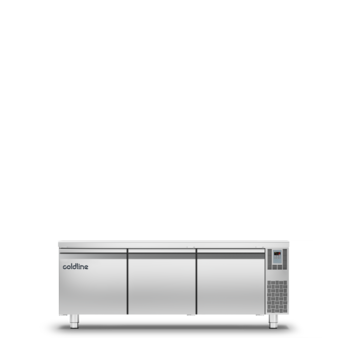

Snack GN counter 3 doors
TP16/1BR-490
Snack GN counter 3 doors
-15°-22°C
with top h. 490 mm L. 1600 mm
remote
-15°-22°C
with top h. 490 mm L. 1600 mm
remote
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1600×700×630 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50-60 Hz
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 3DR h 100 mm
- Removable plinth GN 3DR h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Drawers 1/1
- Drawers 1/2
- Technical compartment on the left
- Common technical compartment
- Special size of technical compartment
- Technical compartment on the left
- Counters without a technical compartment
- Lock with key for drawer 1/1
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- RAL customisable colouring
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- Alimentazione frequenza 60Hz
- Other special voltage
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
Snack GN counter 3 doors
TS16/1BR-490
Snack GN counter 3 doors
-15°-22°C
without top h. 490 mm L. 1600 mm
remote
-15°-22°C
without top h. 490 mm L. 1600 mm
remote
Features
- Standard equipment 3 slides, 3 plastic coated GN1/1 shelves
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 278 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 490 mm
- Valve Supplied standard with solenoid
- Dimensions 1600×680×590 mm
- Packing dimensions 1875×800×998 mm
- Voltage 220-240 V - 50-60 Hz
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Brackets for GN pans for drawer
- GN1/2 container + lids kit for drawer, h 150 mm
- GN1/3 container + lids kit for drawer, h 150 mm
- Bottles shelf, stainless steel coating for shelf 350
- Stainless steel shelf GN1/1
- Plastic coated shelf GN1/1
- Pair of type C slides 505 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth GN 3DR h 100 mm
- Removable plinth GN 3DR h 150 mm
Variants
- Drawers 1/1
- Drawers 1/2
- Special size of technical compartment
- Drawers 1/1
- Drawers 1/2
- Technical compartment on the left
- Common technical compartment
- Special size of technical compartment
- Technical compartment on the left
- Counters without a technical compartment
- Lock with key for drawer 1/1
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- RAL customisable colouring
- Lock with key for drawer 1/1
- Lock with key for drawer 1/2
- Alimentazione frequenza 60Hz
- Other special voltage
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
